When it comes to selecting the right conductor material for electrical and electronic applications, tin plated copper clad steel wire has become a reliable choice for many manufacturers. Its combination of high conductivity, strength, and corrosion resistance makes it suitable for a wide range of industries, from telecommunications to automotive wiring. This article explains why businesses around the world are increasingly turning to this material and what advantages it offers for electrical applications.
What Is Tin Plated Copper Clad Steel Wire?
Tin plated copper clad steel wire, also known as tin coated copper clad steel wire, is a composite conductor made by coating a steel core with a layer of copper, followed by an additional tin plating. This structure offers the mechanical strength of steel, the electrical conductivity of copper, and the protective benefits of tin. The result is a wire that performs well in demanding environments while meeting the requirements of modern electrical and electronic systems.

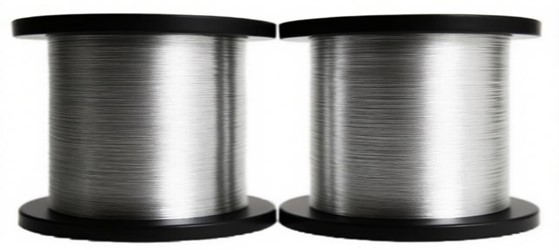

Tin Coated Copper Clad Steel Wire
Key Advantages of Tin Plated Copper Clad Steel Wire
1. Excellent Corrosion Resistance
One of the biggest benefits of tin plating is protection against oxidation and corrosion. In environments where standard copper conductors may degrade over time, tin coated copper clad steel wire maintains reliable performance. This makes it ideal for applications exposed to moisture, fluctuating temperatures, or outdoor conditions.
2. Strong Mechanical Properties
The steel core provides mechanical strength, ensuring the wire resists stretching and breaking under tension. Compared to pure copper wires, this hybrid structure reduces the risk of damage during installation and use, particularly in long cable runs or overhead wiring.
3. Reliable Conductivity
The copper cladding ensures good electrical conductivity, while the tin plating enhances solderability. This combination is especially valuable in electronic components and chip soldering, where strong, stable connections are essential.
4. Long Service Life
Because of its resistance to corrosion and wear, tin coated copper clad steel wire extends the lifespan of electrical systems. For manufacturers, this translates into fewer replacements, reduced maintenance costs, and greater reliability for end-users.
Horle Tin Plated Copper Clad Steel Wire: Technical Highlights
Horle's tin plated copper clad steel wire is designed with strict quality control to meet international standards.
- Size (OD): 0.25–1.0 mm
- Tin Coating Thickness:
≥3 μm for OD ＜0.32 mm
≥5 μm for OD ≥0.32 mm
- Compliance: RoHS & REACH certified, meeting global environmental requirements
- Packaging: Bobbin format for convenient handling
The thicker tin coating not only improves corrosion resistance but also makes the wire highly suitable for soldering applications, ensuring dependable performance in assembly lines and automated production.
Tin Coated Copper Clad Steel Wire
Tin Coated Copper Clad Steel Wire Applications in Electrical Industries
Because of its versatile properties, tin plated copper clad steel wire is widely used across different industries:
- Telecommunications: For signal transmission lines requiring both strength and conductivity.
- Automotive Wiring: Withstands vibration, heat, and exposure to moisture.
- Electronic Components: Perfect for chip soldering and insulation wire conductors.
- Power Transmission: Provides a balance between durability and electrical efficiency.
- Aerospace and Defense: Trusted in harsh environments where reliability is critical.
In each of these applications, the wire delivers stable performance without sacrificing strength or longevity.
Why Choose Horle: Manufacturing Strengths
Horle has specialized in tin plated copper clad steel wire production with strict control over every stage of manufacturing. The company uses advanced plating technology to ensure uniform tin coating, stable adhesion, and excellent soldering performance.
- Precision Control: Wire diameters from 0.25–1.0 mm produced with consistent quality.
- High Tin Coating Accuracy: ≥3 μm for fine wires and ≥5 μm for larger diameters.
- Environmental Compliance: All products meet RoHS & REACH standards.
- Packaging Advantage: Supplied on durable bobbins for smooth unwinding during mass production.
- Application Support: Suitable for insulation wire conductors and high-reliability chip soldering.
By focusing on technical reliability and customized solutions, Horle helps buyers reduce defects in assembly, improve production efficiency, and extend the life of their final products.
Final Thoughts
Choosing the right conductor material is essential for any electrical project. Tin plated copper clad steel wire offers the ideal balance of strength, conductivity, corrosion resistance, and cost-effectiveness. Its proven performance in telecommunications, automotive, and electronics makes it a dependable option for businesses worldwide.
For companies seeking a trusted partner, Horle delivers professional tin plated copper clad steel wire solutions with guaranteed quality and global support. Investing in the right wire today ensures long-term reliability and efficiency for tomorrow’s electrical applications.
