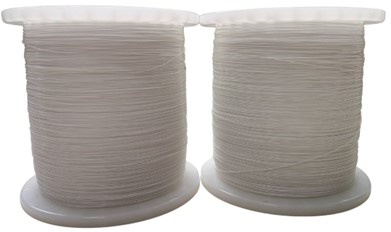

Tin Coated Copper Clad Steel FEP Wire

Technical Parameter

Conductor: Tin Plated Copper Clad Steel

Conductor Size: Minimum OD 0.25mm

Tin Coating Thickness:3-8μm

Jacket: 200℃  FEP

Color: Clear/Red/Green/Black/Yellow/Purple/Brown……

RoHS & REACH Compliance



Wire Characteristics:

This conductor's tin coating thickness is 3-8μm as per different conductor sizes (normal tin coated copper clad steel wire tin coating thickness is 0.3μm,0.5μm……), it will greatly help to improve thermistor chip soldering quality.
