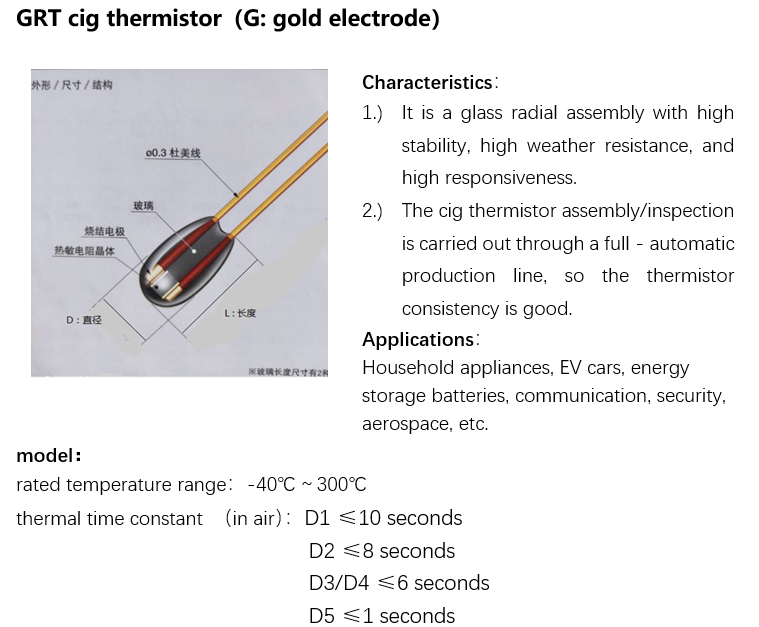

Gold Electrode NTC Thermistor
GLASS ENCAPSULATED NTC THERMISTOR
Also Called: Glass Head NTC Thermistor
Chip In Glass NTC Thermistor
Model Number
GRT: G: glass insulation R: thermistor T: temperature
GRT Type NTC was named as per their shape and characteristics, and know this NTC characteristics from their model number
GRT Type NTC Shape And Size(mm)：
|
Mode |
Head Spec |
Head Width A |
Head length B |
Spacing C |
Wire Spec D |
Total length L |
Working temp |
|
D1GRT |
φ2.00 |
2.20±0.2 |
3.4±0.3 |
0.3±0.1 |
0.30±0.03 |
70±3 |
- 40℃～ 200℃(silver electrode); - 40℃～ 300℃ (gold electrode); |
|
D2GRT |
φ1.60 |
1.60±0.2 |
2.9±0.3 |
0.3±0.1 |
0.25±0.03 |
70±3 |
|
|
D3GRT |
φ1.35 |
1.35±0.2 |
2.6±0.3 |
0.3±0.1 |
0.20±0.03 |
70±3 |
|
|
D4GRT |
φ1.25 |
1.30±0.2 |
2.5±0.3 |
0.3±0.1 |
0.20±0.03 |
70±3 |
|
|
D5GRT |
φ0.80 |
0.80±0.2 |
1.5±0.3 |
0.3±0.1 |
0.15±0.03 |
70±3 |

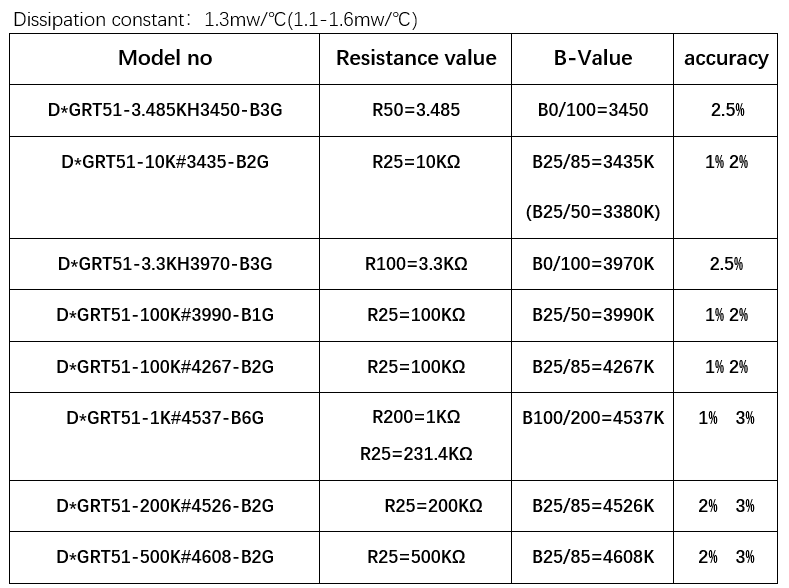

Specification Parameter Table
|
D □ GRT □-□ K □ □- □ □ 1 2 3 4 5 6 7 8 9 |
|
|
1 |
Manufacturer： D: Daxin-sensor |
|
2 |
Glass head OD：1:Φ2.0 mm 2:Φ1.60mm 3:Φ1.35mm 4:Φ1.25mm 5:Φ 0.80mm |
|
3 |
GRT： glass encapsulated NTC |
|
4 |
51:single end sealed 58:diode type |
|
5 |
Resistance value at 25℃ KΩ |
|
6 |
F： ±1% G：±2% H:±3% J:±5% |
|
7 |
B–Value |
|
8 |
B1:B25/50 B2:B25/85 B3:B0/100 B4:B0/50 B5:B50/85 B6:B100/200 |
|
9 |
G：gold electrode S：silver electrode |
