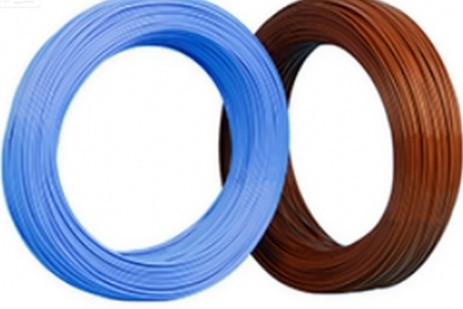

Tin Coated Nickel ETFE Wire
Technical Parameter
Conductor: Tin Plated Nickel
Conductor Size: ≥0.25mm
Tin Coating Thickness: ≥3μm for OD＜0.32mm
≥5μm for OD≥0.32mm
Jacket: 150℃ ETFE
200℃ ETFE
Color: Clear/Red/Green/Black/Yellow/Purple/Brown……
RoHS & REACH Compliance
Wire Characteristics:
1.）Thick tin coating layer is good for chip soldering.
2.) Nickel wire is good for heating conduction compare to normal copper conductor.
